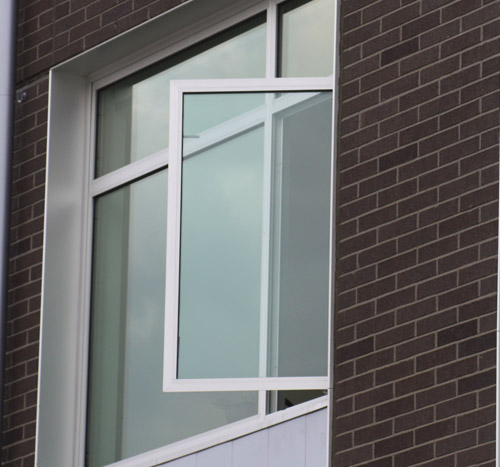

The D8 Aluminum T8700 Series Thermally-Broken Projected Window provides exceptional value and performance while enhancing the views of schools, hospitals, public buildings or any commercial application. This system is engineered to meet DOD/GSA blast criteria and ASTM criteria for hurricane-rated systems.
The T8700 Series Thermally-Broken Projected Window has been tested in accordance with AAMA/WDMA/CSA/101/I.S.2/A440-08 (NAFS-08) and comes with an industry standard factory warranty
| Blast rated |
Engineered to meet DOD/GSA blast criteria |
| Hurricane rated |
Engineered to meet ASTM 1886/ASTM 1996 |
| 4” depth |
Delivers structural integrity to accommodate design requirements |
| Casement, awning and fixed configurations |
Configurable options to accommodate design specifications |
| Factory glazed |
Consistent, reliable performance and excellent quality control |
| Custom painted and anodized finishes |
Wide variety of finishes to accommodate design specifications and customer needs |
| Type |
Fixed |
Awning |
Casement |
Air @ 6.24 PSF |
Per ASTM E-283 |
<0.01 cfm/SF |
0.01 cfm/SF |
0.01 cfm/SF |
| Water | Per ASTM E-331 |
12 psf |
10 psf |
10 psf |
| U-Value | Per NFRC-100 |
0.37 - 0.56 |
0.49 - 0.60 |
0.49 - 0.60 |
| NFRC CPD # |
PGS-K-1 |
PGS-K-3 |
PGS-K-2 |
|
