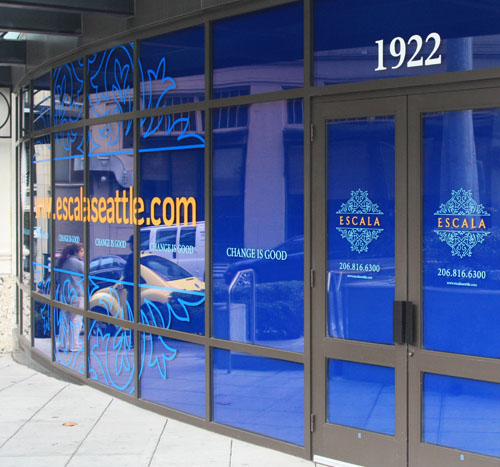

The D8 Aluminum T700 Series Storefront is a screw spline center set thermally-broken storefront system that delivers high-energy efficiency and is a cost-effective glazing solution for commercial construction. This Series can accommodate all standard D8 entrances and vents.
The T700 Series Thermally-Broken Center Set Storefront system comes with an industry standard factory warranty.
| 1/4” to 1” glazing options |
Adaptable glazing options to accommodate design specifications and thermal performance requirements |
| Inside or outside glaze |
Cost savings on installation and window replacement |
| Thermally broken |
Enhanced energy savings and performance |
| Integrated sunshade option |
Attaches to system, not structure and enhances energy savings and performance |
| Cover cap extension options |
Exterior enclosure design flexibility |
| Vertical stack mullion |
Stackable bays for efficient installation |
| Custom painted and anodized finishes |
Wide variety of finishes to accommodate design specifications and customer needs |
| Air @ 6.24 PSF | Per ASTM E-283 |
<0.06 cfm/SF |
| Water | Per ASTM E-331 |
10 psf |
| U-Value | Per NFRC-100 |
0.37 - 0.46 |
|
